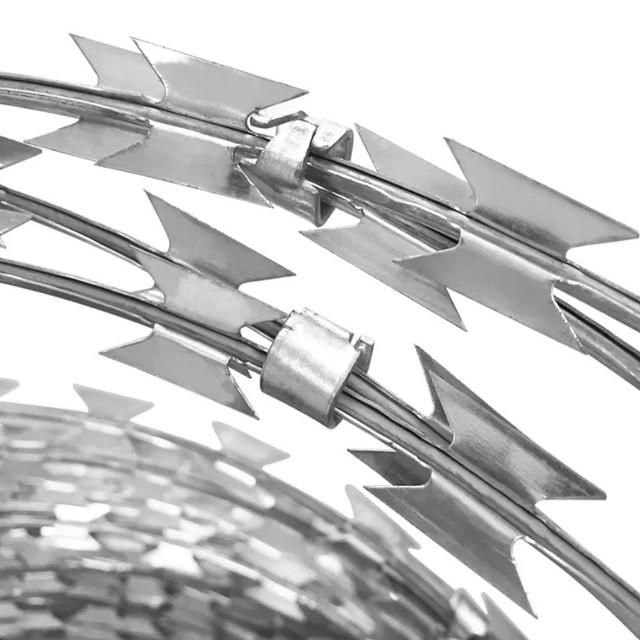

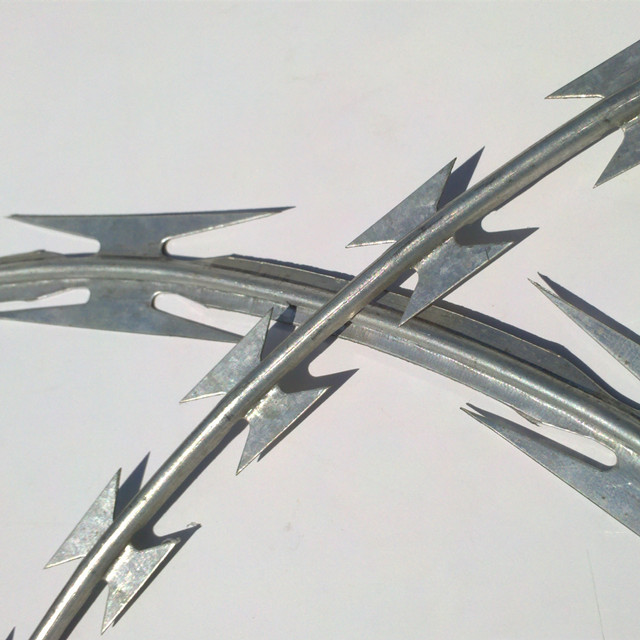

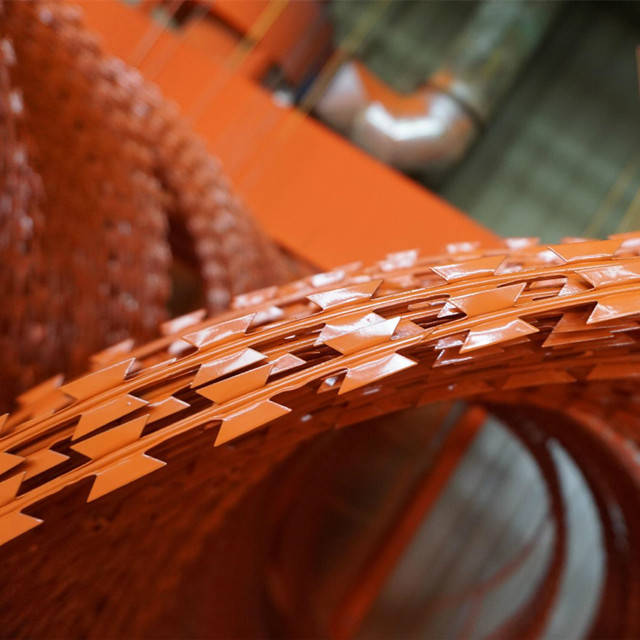

Razor Wire

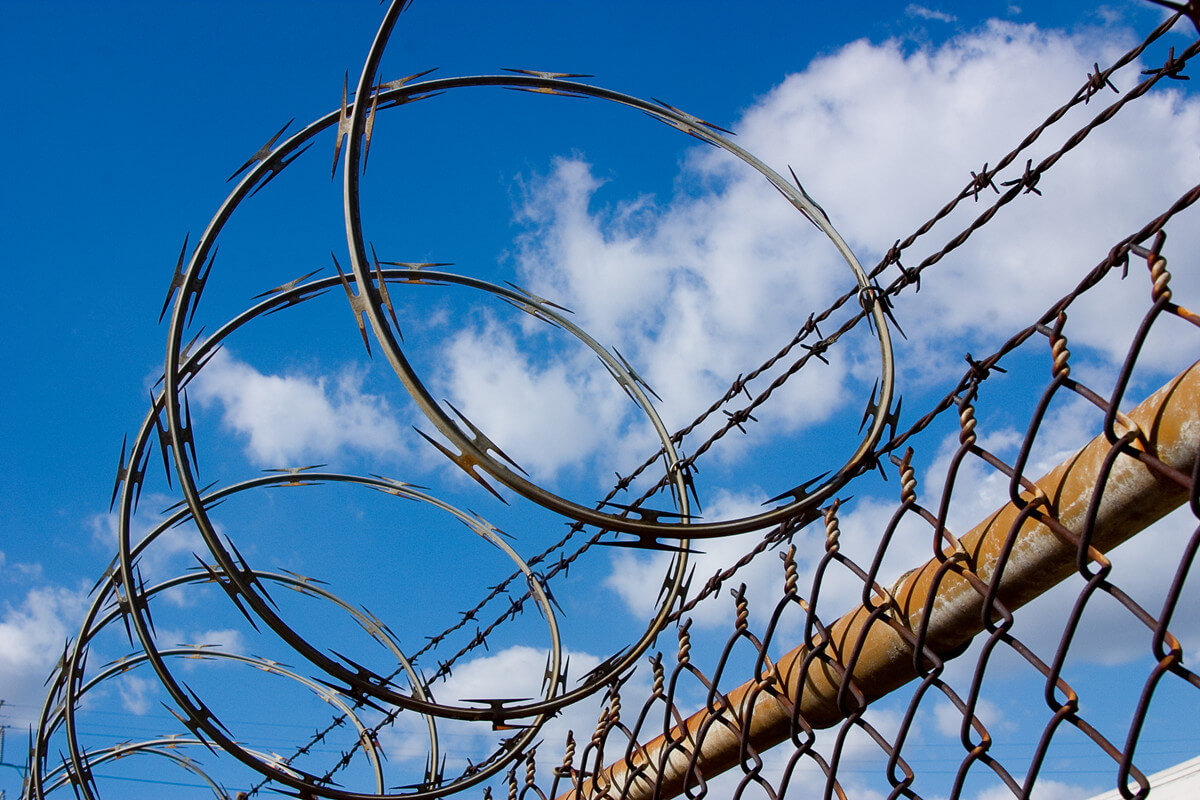

Razor Barbed Wire Mesh Fence is a special type of Wire Mesh Fence, which is usually used as an additional security measure.

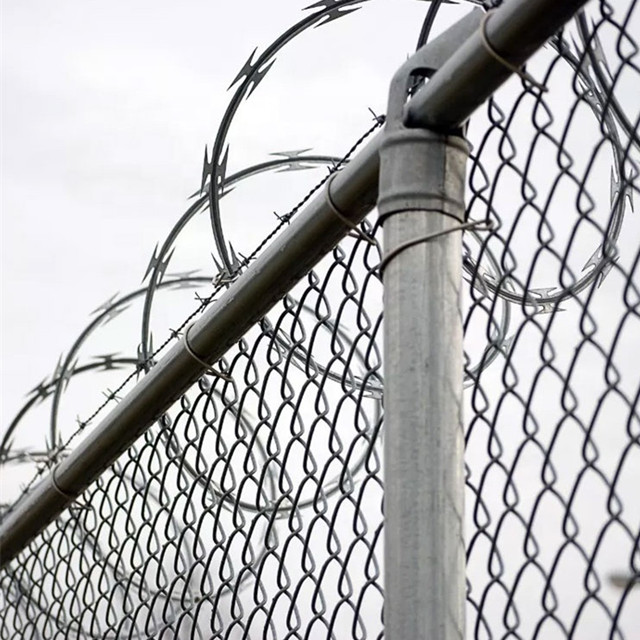

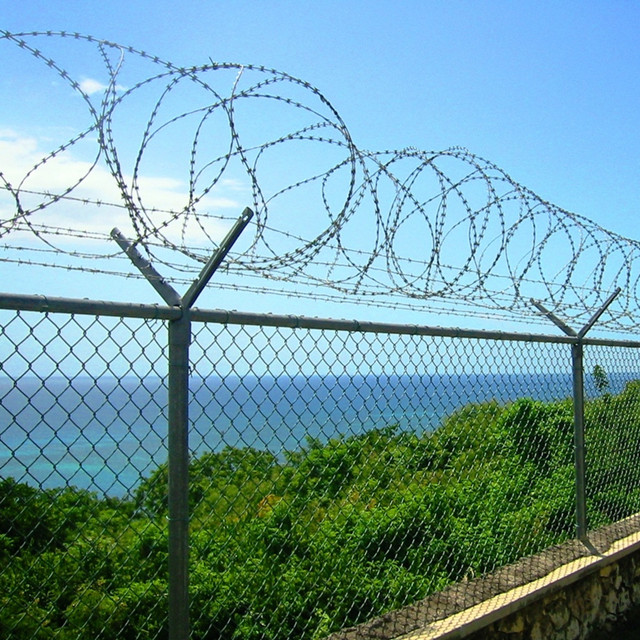

It can be used to substitute the mesh panel as a whole or to finish off the security feature of the fence panel by placing it at the top of the fence.

Production process:

  1. Galvanized sheet stamping.

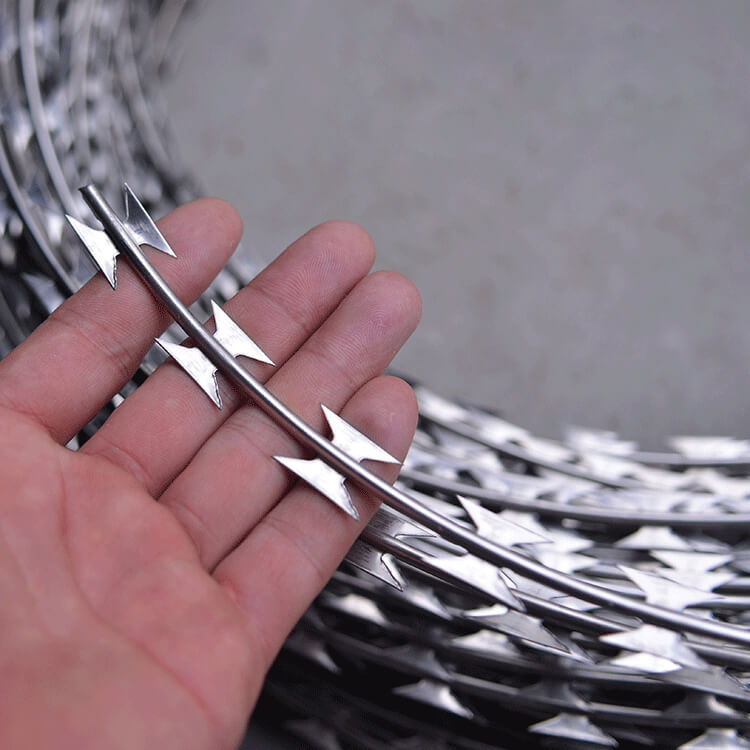

  2. The blade and the wire are combined.

  3. Make a circle at the end

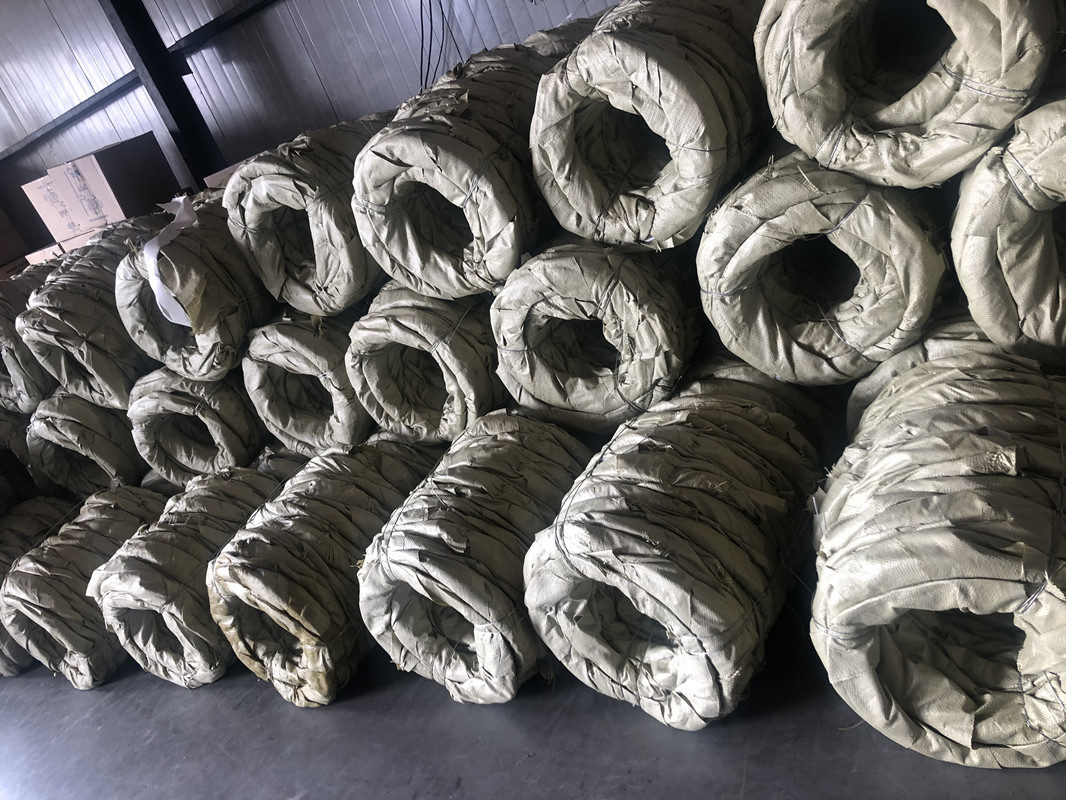

  4. Finally, it is packaged, with plastic film inside and outside weaving or carton packaging.


Standard blade specification types:

  1. BTO-10,thickness:0.5±0.05;diameter of center line:2.5±0.1;length:10±1;width:13±1;distance:26±1

  2. BTO-12,thickness:0.5±0.05;diameter of center line:2.5±0.1;length:12±1;width:15±1;distance:26±1

  3. BTO-18,thickness:0.5±0.05;diameter of center line:2.5±0.1;length:18±1;width:15±1;distance:33±1

  4. BTO-22,thickness:0.5±0.05;diameter of center line:2.5±0.1;length:22±1;width:15±1;distance:34±1

  5. BTO-28,thickness:0.5±0.05;diameter of center line:2.5;length:28;width:15;distance:45±1

  6. BTO-10,thickness:0.5±0.05;diameter of center line:2.5;length:30;width:18;distance:45±1

  7. CBT-60,thickness:0.6±0.05;diameter of center line:2.5±0.1;length:60±2;width:32±1;distance:100±2

  8. CBT-65,thickness:0.6±0.05;diameter of center line:2.5±0.1;length:65±2;width:21±1;distance:100±2


Razor Wire

Razor Wire

Razor Wire

Blade Specifications and Dimensions
External diameterCylinder numberStandard cover lengthProduction formRemark
450mm338MCBT-65Single coil
500mm4110MCBT-65Single coil
700mm4110MCBT-65Single coil
960mm5313MCBT-65Single coil
500mm10216MBTO-10.15.22Cross type
600mm8614MBTO-10.15.22Cross type
700mm7212MBTO-10.15.22Cross type
800mm6410MBTO-10.15.22Cross type

This type of Wire Mesh Fence is suitable to be installed in high security areas such as police stations, airports and warehouses.

Commercial or Private houses that require more security can also install it around the premises.


Energy station

Prison

Warehouse

Police station

Airport


Why the Razor Wire is needed?


Safety is one of the most fundamental needs of human. Everyone wants to feel safe inside their shelter and protect their valuable assets, or prevent special individuals from escaping without permission.

With super sharp Razor design, Razor Barbed Wire Mesh is a perfect selection for your security and safety requirements.

It not only prevents people from illegally entering property, but also prevents people from leaving the area.
