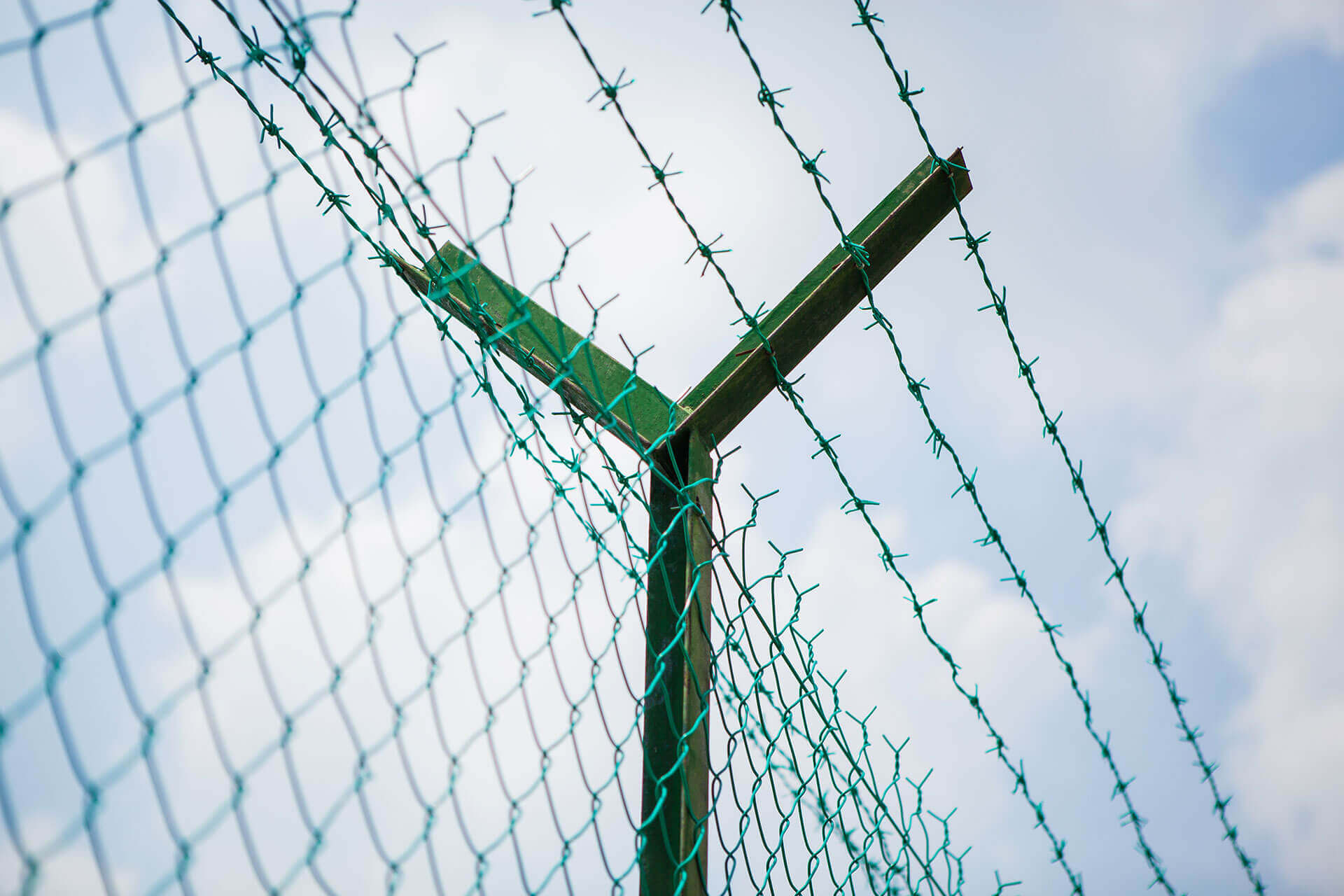

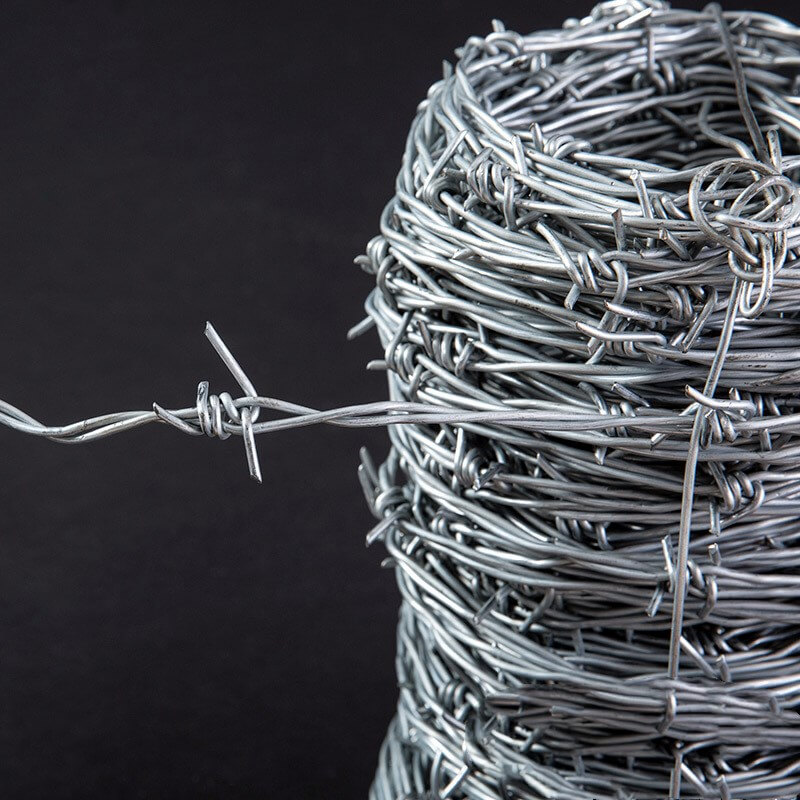

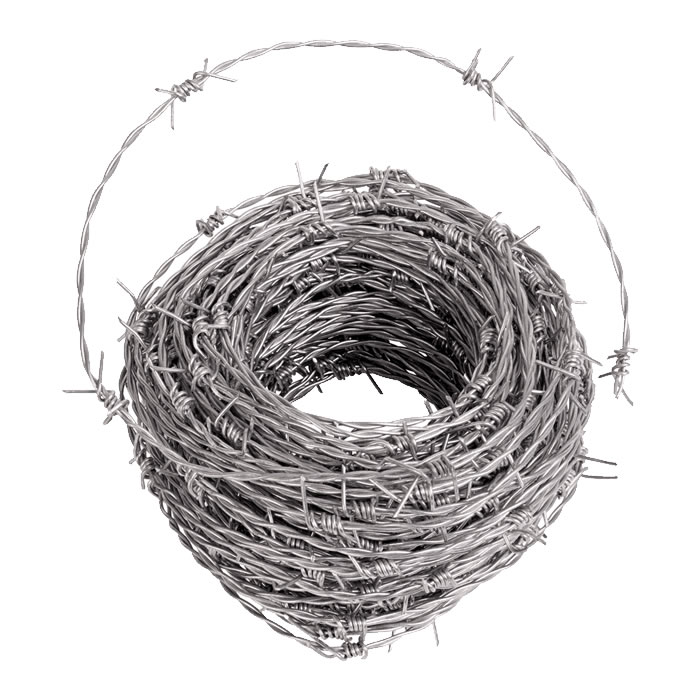

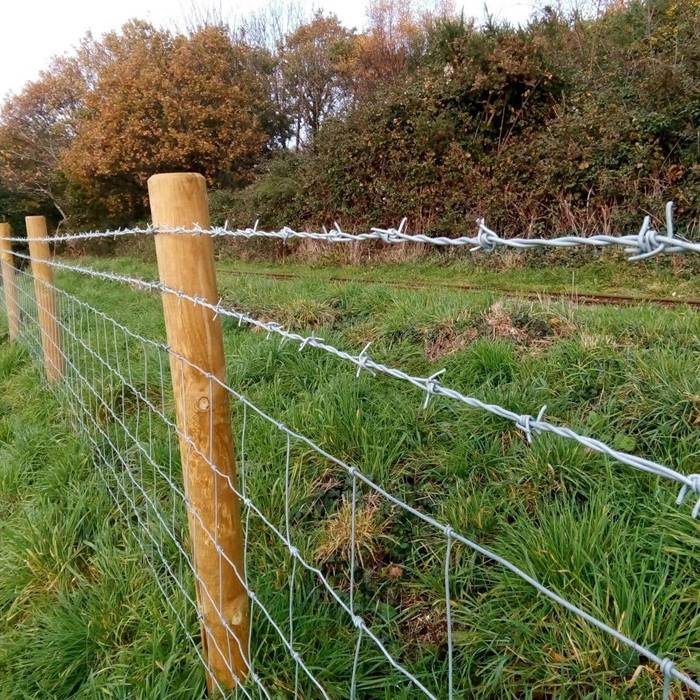

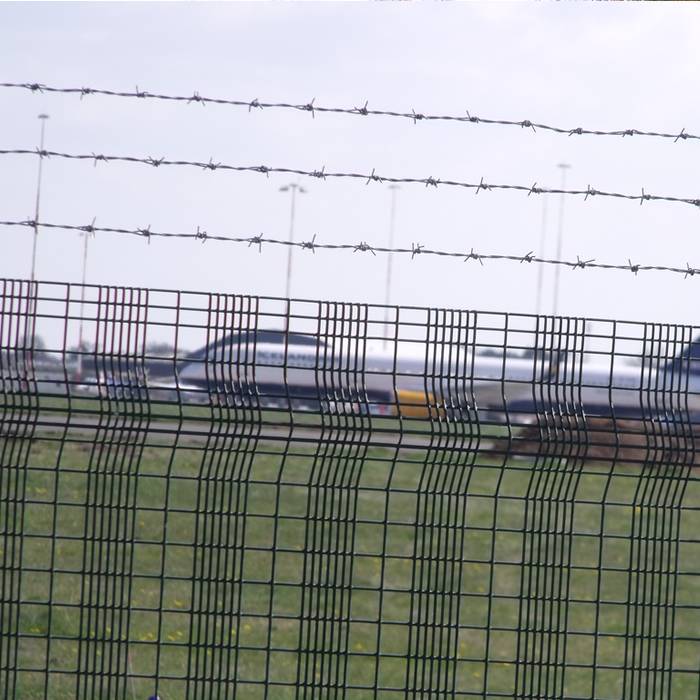

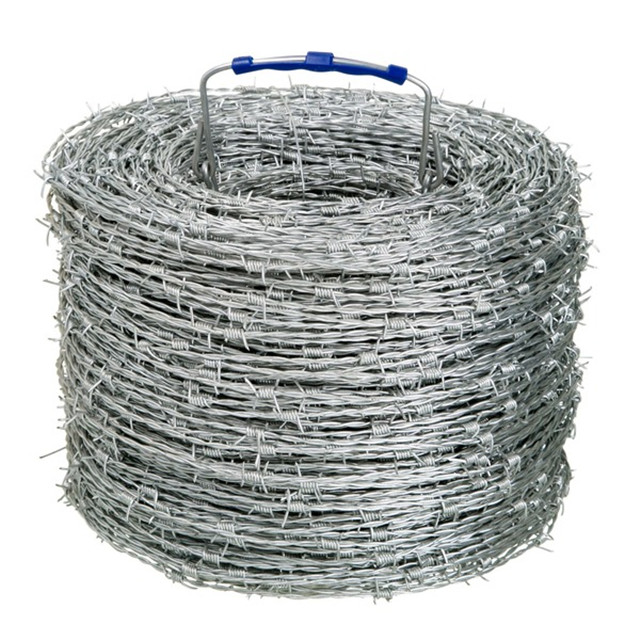

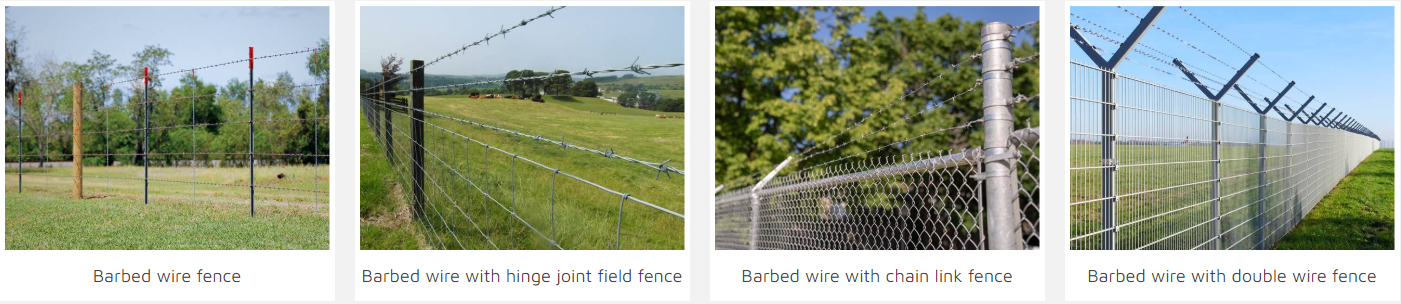

Barbed wire is used for various security fencing and barriers. It can be laid directly on the ground, mounted on the top of fence or in rows as an independent barrier. To prevent corrosion, barbed wire is available in galvanized, PVC coated and stainless steel materials.
Barbed wire is regarded as an economical and effective protection measurement in both residential, agricultural, commercial and industrial applications.
| Quantity: | |
|---|---|
Material:Q195
Surface treatment:Electro galvanized,hot-dipped galvanized,PVC coated.
Tensile Strength:
Soft: 300–650 N/mm2
High tensile: 850–1200 N/mm2

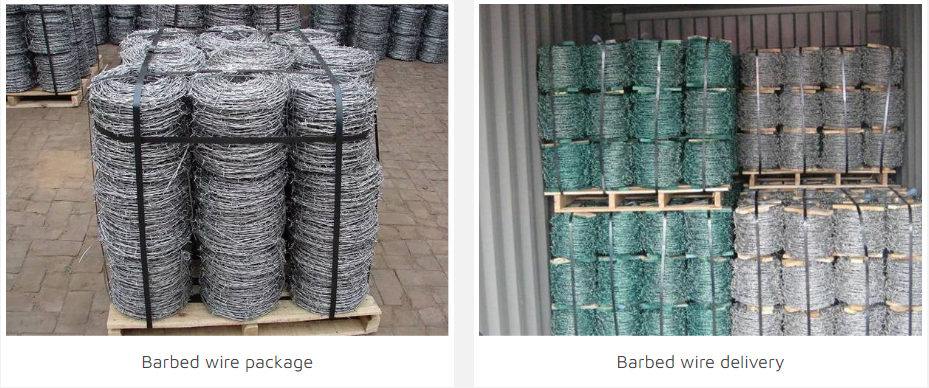

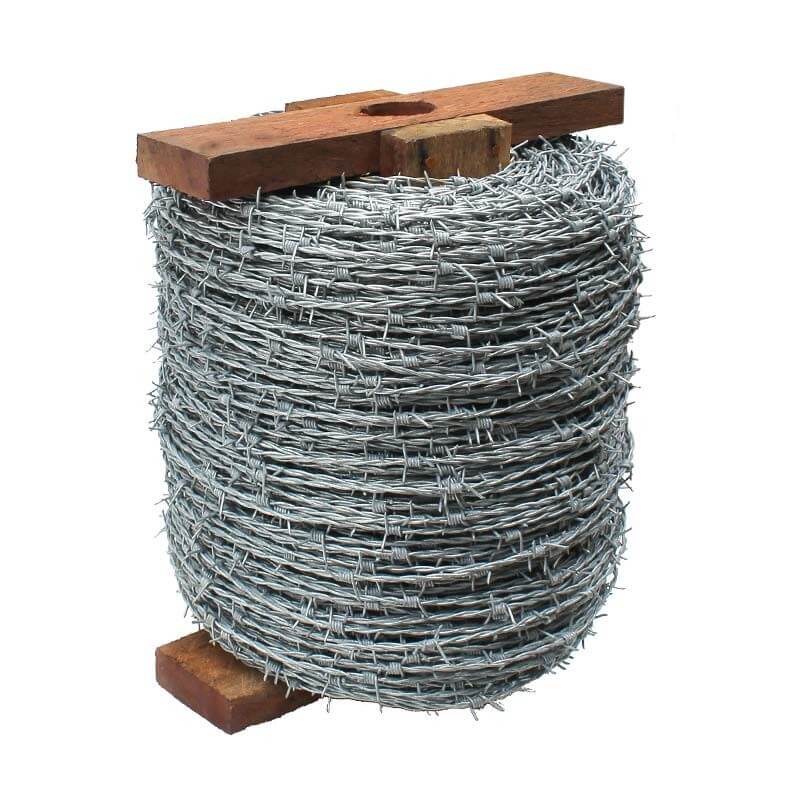

Package:
Wood pallet,wood box,steel pallet,bulk package,etc.
| Wire Diameter (BWG) | Length (m/kg) | |||
|---|---|---|---|---|
| Barb Distance 3" | Barb Distance 4" | Barb Distance 5" | Barb Distance 6" | |
| 12 × 12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
| 12 × 14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12-1/2 × 12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
| 12-1/2 × 14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
| 13 × 13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
| 13 × 14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13.5 × 14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14 × 14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
| 14-1/2 × 14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15 × 15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
| 15-1/2 × 15-1/2 | 15.3491 | 17.1144 | 18.4080 | 19.3386 |
| Wire Diameter | Barbs distance | Barb length | |
|---|---|---|---|
| Before coating | After coating | ||
| 1.0–3.5 mm | 1.4–4.0 mm | 7.5–15 cm | 1.5–3 cm |
| PVC coating thickness: 0.4–0.6 mm; different colors or length are available at customers request | |||
