Galvanized Wire

The galvanized wire is the wire with zinc layers. It is one of the most popular products in the market as the building materials.

Availability:
Quantity:



Galvanized wire is the iron wire with zinc coating. It is widely used in the construction areas as the building materials. It can be mainly separated to two main types: Hot dipped galvanized one and electro - galvanized wire.

The main difference between two types of wire is the zinc coating content. The zinc content of hot dipped galvanized is around 45-245GSM. And the electro - galvanized wire is around 8-15 gsm.

With different zinc content, they have different performance in anti-rust. Higher the zinc content, the better performance in anti-erosion.

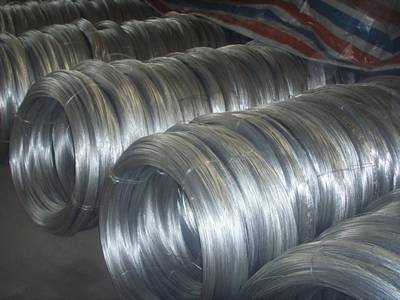

electro-galvanized-coil-wire

EGW-01: Electro galvanized coil wire.

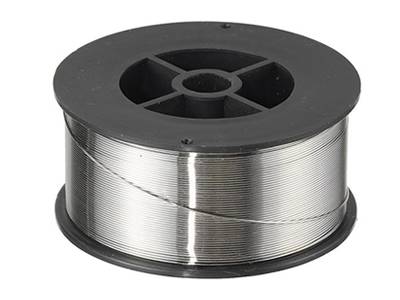

electro-galvanized-spool-wire

EGW-02: Electro galvanized spool wire.


Specification:

  • Material: carbon steel wire.

  • Processing: steel rod coil – wire drawing – wire annealing – rust removing – acid washing – boiling – drying – zinc feeding – wire coiling.

  • Wire diameter: 6–24 gauge (0.55–5 mm).

  • Tensile strength: 350–550 N/mm2.

  • Elongation: 8% – 15%.

  • Function: to form coil wire, spool wire or processed into cut wire or U type wire.

  • Type: common use wire, light galvanized soft wire, heavily galvanized soft wire, extra-heavily galvanized soft wire and high carbon wire.


Feature:

  • Firm zinc coating.

  • Good anti-corrosion and anti-oxidation.

  • Wide application.


Application:

  • Mesh weaving.

  • Tying wire in architectural site.

  • Making handicrafts.

  • Material of mesh and fence.

  • Packing life products.


Packing:

  • Detail:

    • Inside plastic films, outside hessian cloth.

    • Inside plastic films, outside moister-proof paper.

  • Total:

    • In coils or spools (single coil weight ranges from 10 kg to 1000 kg).

    • In carton or pallet.

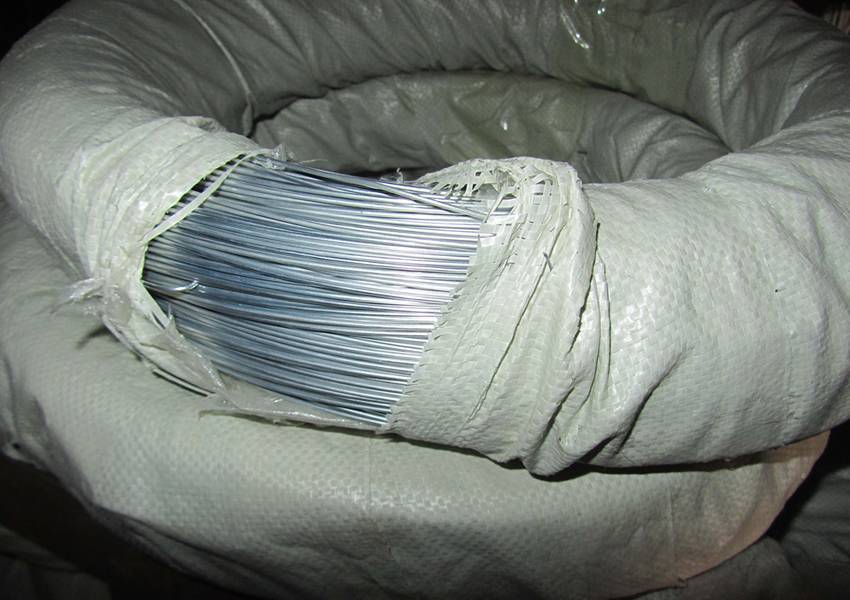

galvanized-wire-woven-bag

EGW-03: Electro galvanized wire packed with woven bag.

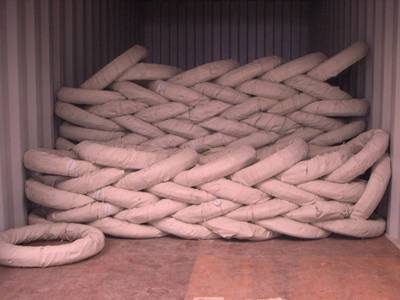

galvanized-wire-hessian-bag

EGW-04: Electro galvanized wire packed with hessian bag.




Redrawing galvanized wire can be divided into two types: electro galvanized redrawing wire and hot-dipped galvanized redrawing wire. Its production process is steel wire rod - the first drawing - annealed - galvanized - the second drawing. As material of fence and material, redrawing galvanized wire has excellent tensile strength and flexibility. In addition, the cost of redrawing galvanized wire is more cheaper than common galvanized wire.

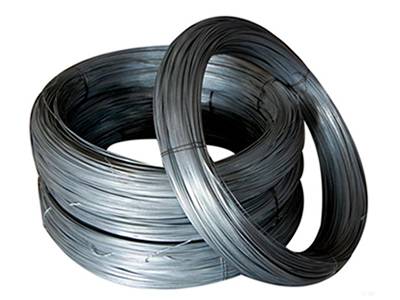

redrawing-galvanized-wire

RGW-01: Coils of redrawing galvanized bright wire.


Specification:

  • Material: high quality low carbon steel, iron wire.

  • Production process: steel wire rod - the first drawing - annealed - galvanized - the second drawing.

  • Treatment: zinc coated.

  • Surface: bright, smooth.

  • Type: electro galvanized redrawing wire, hot-dip galvanized redrawing wire.

  • Diameter: 9 gauge – 38 gauge (3.65 mm – 0.15 mm).


Table 1: Specification of Redrawing Galvanized Wire
Wire Gauge (BWG) Wire Diameter (mm) Allowed Difference (mm) Weight (kg)
34 G 0.20 ±0.02 10
31 G 0.25
30 G 0.30
28 G 0.35
27 G 0.40 ±0.03
25 G 0.50
23 G 0.6
21 G 0.8
20 G 0.9
19 G 1.00 ±0.04 25
18 G 1.20
17 G 1.40
16 G 1.60
15 G 1.80 ±0.05 50
14 G 2.00
13 G 2.50
11 G 3.00


Characteristic:

  • Excellent tensile strength and flexibility.

  • Beautiful, bright and smooth surface.

  • Enduring fastness.

  • Anti-corrosion and anti-oxidation.

  • Long service life.


Application:

  • Reinforcing construction wire mesh.

  • Welded wire mesh panels.

  • Chain link fence.

  • Crimped wire mesh.

  • Nails brush steel rope.

  • Construction and handcraft products.

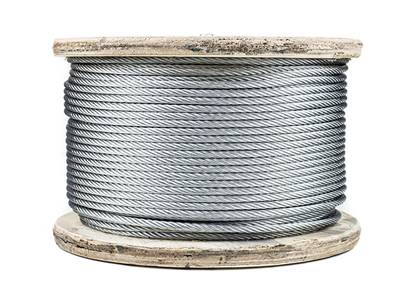

redrawing-galvanized-steel-rope

RGW-02: Redrawing galvanized wire for steel rope.

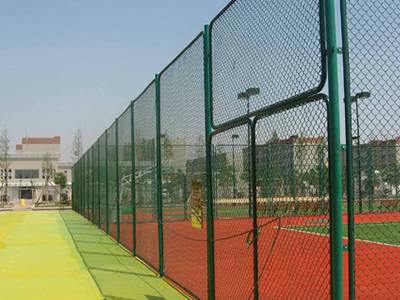

redrawing-chain-link-fence

RGW-03: Redrawing galvanized wire for chain link fence.


Package:

  • Detail:

    • Plastic film inside and hessian cloth outside.

    • Plastic film inside and woven bag outside.

  • Total:

    • In carton and wooden pallet

    • In carton and metal pallet.


redrawn-galvanized-woven-bag

RGW-04: Redrawing galvanized wire packaged in woven bag.
