Razor Wire Fencing
Compact and rational structure, high safety factor, Easy installation.for the protection of prison and key project.
High:3000mm long:3000m
Open hole:50*50mm Post:60*60mm
Razor barbed wire fencing and razor wire concertina makes the majority of our products. Razor barbed wire fencing is usually made of galvanized steel blade or stainless steel blade. Two pieces of stainless steel razor wire or zinc-coated razor wire can be bounded together by clips to make it stronger. The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful outlook and practical property.
Material for Razor Barbed Wire Fencing: Electro and hot dipped Galvanized blade, 304 and 316 and 316L stainless steel blade.
Features: Compact and rational structure, high safety factor, for the protection of prison and key project.
Technical note: Razor barbed wire fencing can be made according to the actual dimension of customer; the special specification is manufactured according to the drawing.
In order to install a razor concertina fencing needs razor barbed wire and other items. There is a fencing example:
Concertina barbed wire: 750 and 500 and 450 mm Dia.BTO-22 and CBT-60 and CBT-65
Barbed wire.
Fabric: 3.76/4.88 mm, 3 m high, mesh 50 mm × 50 mm and 75x75mm galvanized add coated.
Brace rail pipe; 60mm and 89.9 mm, 4 m high length coated epoxy green.
Line post: hollow section 100 × 100 × 4 × 3000 mm with base plate and top cover (post cap) coated.
Double arm 50 × 50 × 5 mm each 500 mm long with 6 notches (epoxy angle plated).
Tie wire: 2.5 mm / 3.76 PVC coated.
Base plate 300 × 300 × 6 mm with epoxy paint finish.
Slats.

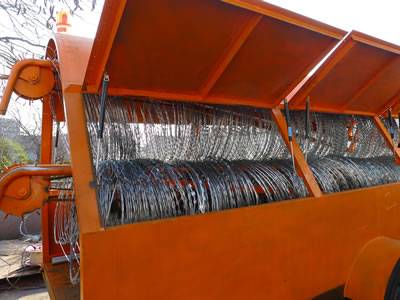

Mobile security barriers (rapid deployment of high density razor wire)
Razor wire mesh for protecting military sites' safety.
Razor wire mesh rapid deployment system.
The system is designed to provide rapid protection - the 75-1000 meter barriers of barbed tape/razor wire coils can be deployed in seconds.
Barriers are fully re-usable.
Equipment is supplied to uplift and recompress the barrier into modules, simple to handle and compact to store.
A single carrier unit can be quickly refilled to drop many miles of barrier in a short space of time.
Systems can be tailored to meet customers exact requirements.
No Police or Military Organization can afford to be without this valuable tool.
| Outside Diameter | No.of Loops | Standard Length per Coil | Type | Notes |
|---|---|---|---|---|
| 450 mm | 33 | 8 m | CBT-65 | Single coil |
| 500 mm | 41 | 10 m | CBT-65 | Single coil |
| 700 mm | 41 | 10 m | CBT-65 | Single coil |
| 960 mm | 53 | 13 m | CBT-65 | Single coil |
| 500 mm | 102 | 16 m | BTO-10.15.22 | Cross type |
| 600 mm | 86 | 14 m | BTO-10.15.22 | Cross type |
| 700 mm | 72 | 12 m | BTO-10.15.22 | Cross type |
| 800 mm | 64 | 10 m | BTO-10.15.22 | Cross type |
| 960 mm | 52 | 9 m | BTO-10.15.22 | Cross type |
Pack：Bulk and Pallet
Loading：by sea and train for 20GP and 40GP and 40HC
