BRC Roll Top Fencing

Material:Low carbon steel wire

Wire:3mm,4mm

Mesh:50*200mm

Height:1.2m-3m

Width:2-3m

Availability:
Quantity:


Roll Top mesh fence is also called BRC fence, has a unique and use-friendly closed and rolled beam section at the top and bottom edge of each panel with no sharp or raw edges, usually made from heavy 5mm wires, which results in maximum rigidity and better safety. Roll top fencing panels is suitable where safety is a consideration, such as schools, sports, parks and playgrounds, and company premises.


BRC fencing Introductions:

BRC Welded Fence, also named triangle bending fence, roll top fence, is a beautiful, elegance and currently the most popular welded fencing system. Rolled top and bottom means no sharp or raw edges. It’s an open mesh system that allows excellent visibility making it widely popular among communities. It is corrosion resistance due to the entire weld fence panels, posts, brackets and clips are all fully galvanized items.

 Recently, BRC Welded Fence has been widely used in public and private properties areas which includes: car parks, park’s fence, schools, playground, pedestrian zone, factory, residence and bungalow properties.


BRC fencing Panels:
BRC fencing PanelsThe roll top fence panels are made from 150 x 50mm and 200x50mm welded mesh using 3.0-5.0mm heavy-duty wire to achieve high strength and rigidity.

The roll top fencing panels is 3.0m wide and standard fence height is 1.2m, other heights are available on request. To achieve a range of fence height of either 1.2m or 2.4m, the panels are designed so they can be added in 1.2m stages. In this case one or more panels are fitted above the bottom panel with the rolled beam sections being clipped securely being clipped securely together.

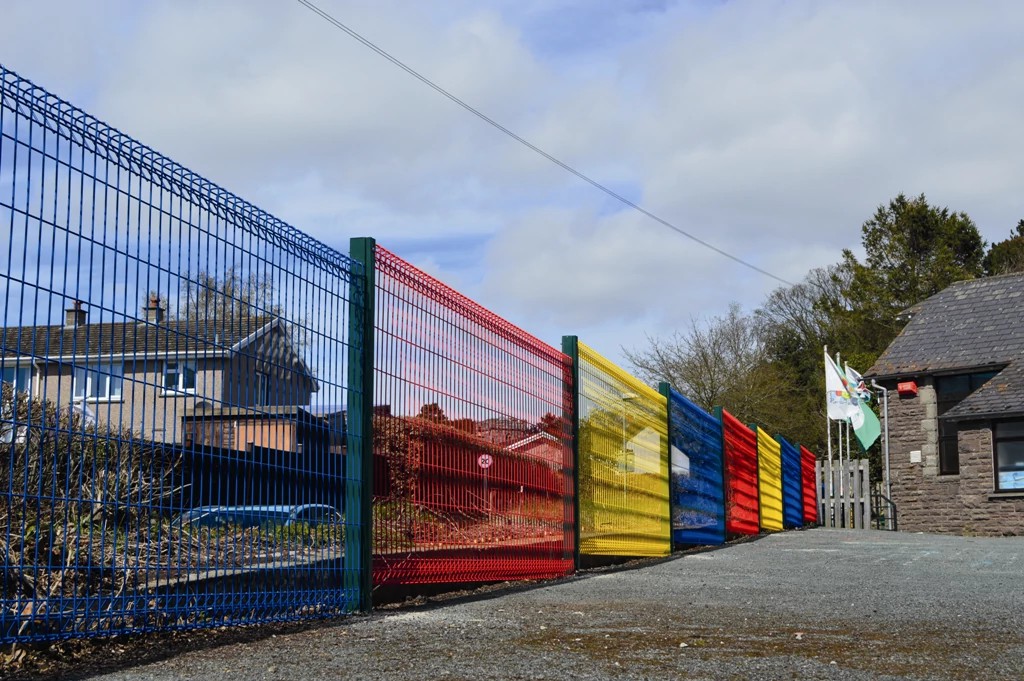

BRC Roll Top Fencing

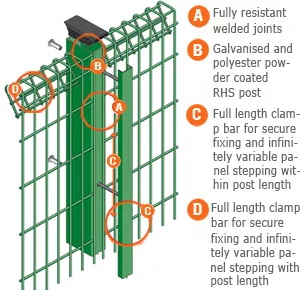

BRC fencing Post:
The posts for BRC fence, roll top fencing panels are manufactured from hot dip galvanized 60 x 60 x 2.0mm or 60×80mm( others are available) square hollow steel section and are available from stock to suit fence heights of 1.2m or 2.4m. Longer posts for higher fences can be supplied. Panels are secured to the posts with steel clips and 6.0mm galvanized security fixings screwed into threaded inserts in the posts. All posts are supplied with protective plastic end caps.

BRC fencing Gates:
Swing gates are available to suit standard height in single and double leaf configuration with a twin wire welded mesh in-fill to match the your Roll top fence. Special sized swing gates or sliding gates can be manufactured to suit individual customer requirements.

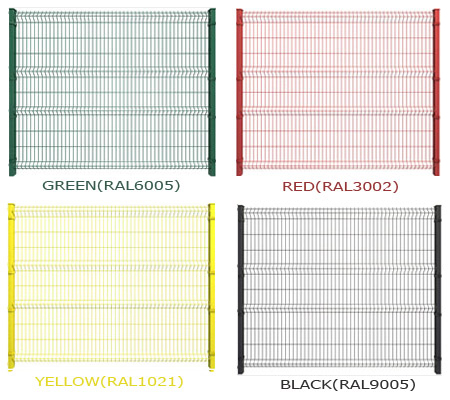

BRC fencing Colors
Linkland welded mesh fence can supply all colors according to international standard RAL Colors, the popular colors as below:


RollTopFence

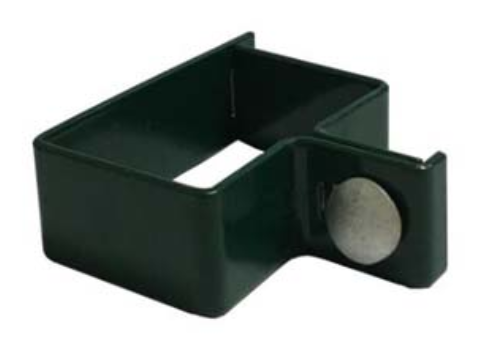

BRC fencing ACCESSORIES:

  • Metal clamp / anti-UV plastic clamp

  • Metal cap / anti-UV plastic cap


clips2


BRC fencing Coating:
The roll top fencing panels are manufactured using galvanized steel wire with super-durable powder coating assures a long service life for the fence system. Our powder coating material is the top brand like AkzoNobel, which provides the industry's Highest Weather-ability and Gloss Retention in U.V. exposure.




Panel sizePostSurface Coating
Panel heightPanel widthWireMesh holesHeight(mm)Post SectionHot Dipped Galvanized (505g/m²)
OR
Electric Galvanized + Polyester Powder Coated
(All colors in Ral)
900mm2.4m & 3m4.0 & 5.0mm50×150mm
50×200mm
1500Square
60×60mm
60×80mm

Round
φ48mm
φ60mm
1200mm2.4m & 3m4.0 & 5.0mm1800
1500mm2.4m & 3m4.0 & 5.0mm2100
1800mm2.4m & 3m4.0 & 5.0mm2400
2400mm2.4m & 3m4.0 & 5.0mm3000
Above are general specifications, others are available.


Pack:  all panels pack use for pallet,  all clips pack use for carton.
